QPE (Hong Kong)
This example demonstrates how to perform QPE, using raingauge and radar data from Hong Kong.
Definitions
import os
import time
import tarfile
import numpy as np
import pandas as pd
import copy
import xarray
import scipy
import pyproj
import matplotlib
from matplotlib.colors import BoundaryNorm
import matplotlib.pyplot as plt
from PIL import Image
from pyresample import utils
from cartopy.io import shapereader
from swirlspy.obs.rain import Rain
from swirlspy.rad.irisref import read_irisref
from swirlspy.core.resample import grid_resample
from swirlspy.qpe.rfmap import rg_interpolate, comp_qpe, show_raingauge
from swirlspy.qpe.utils import timestamps_ending, locate_file, dbz2rr, rr2rf, \
temporal_interp, acc
plt.switch_backend('agg')
THIS_DIR = os.getcwd()
os.chdir(THIS_DIR)
Initialising
This section demonstrates extracting raingauge and radar data.
Step 1: Defining an end-time for accumulating rainfall.
acctime = pd.Timestamp('20190420150000').floor('min')
acctime_str = acctime.strftime('%Y%m%d%H%M')
Step 2: Setting up directories for raingauge and radar files.
rad_dir = THIS_DIR + '/../tests/samples/iris/'
rg_dir = THIS_DIR + '/../tests/samples/rfmap/'
Step 3: Generating timestamps and pattern for both radar and raingauge files.
# Timestamps of raingauges
rg_timestrings = timestamps_ending(
acctime + pd.Timedelta(minutes=5),
duration=pd.Timedelta(hours=1),
interval=pd.Timedelta(minutes=5)
)
# Raingauge pattern
rg_pattern = ['rf5m_20'+ts for ts in rg_timestrings]
# Finding time nearest radar file
# to accumulation end time
minute = acctime.minute
nearest_6min = acctime.minute // 6 * 6
nearest_rad_timestamp = pd.Timestamp(
acctime_str[:-2]+f'{nearest_6min:02}'
)
rad_timestrings = timestamps_ending(
nearest_rad_timestamp,
duration=pd.Timedelta(hours=1),
interval=pd.Timedelta(minutes=6)
)
Step 4: Extracting raingauge and radar files from their respective directories.
located_rg_files = []
for pat in rg_pattern:
located_rg_files.append(locate_file(rg_dir, pat))
located_radar_files = []
for ts in rad_timestrings:
located_radar_files.append(locate_file(rad_dir, ts))
Step 5: Read data from raingauge files into a Rain object. Coordinates are in WGS84, following that in the files.
rg_object_wgs84 = Rain(
located_rg_files,
'WGS84',
duration=pd.Timedelta(minutes=5),
NAN=[3276.7, 32767]
)
Step 6: Read radar files into xarray.DataArrays. The data in the files are already in Cartesian Coordinates, in the Centered Azimuthal Projection.
reflec_list = []
for file in located_radar_files:
reflec = read_irisref(
file
)
reflec_list.append(reflec)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/wradlib/io/iris.py:4095: FutureWarning: IRIS Cartesian Product is currently returned with ``origin='upper'``.
From wradlib version 2.0 the images will be returned with ``origin='lower'``.
To silence this warning set kwarg ``origin='upper'`` or ``origin='lower'``.
filename, loaddata=loaddata, rawdata=rawdata, debug=debug, **kwargs
/tmp/build/docs/swirlspy/swirlspy/rad/_utils.py:48: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/wradlib/io/iris.py:4095: FutureWarning: IRIS Cartesian Product is currently returned with ``origin='upper'``.
From wradlib version 2.0 the images will be returned with ``origin='lower'``.
To silence this warning set kwarg ``origin='upper'`` or ``origin='lower'``.
filename, loaddata=loaddata, rawdata=rawdata, debug=debug, **kwargs
/tmp/build/docs/swirlspy/swirlspy/rad/_utils.py:48: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/wradlib/io/iris.py:4095: FutureWarning: IRIS Cartesian Product is currently returned with ``origin='upper'``.
From wradlib version 2.0 the images will be returned with ``origin='lower'``.
To silence this warning set kwarg ``origin='upper'`` or ``origin='lower'``.
filename, loaddata=loaddata, rawdata=rawdata, debug=debug, **kwargs
/tmp/build/docs/swirlspy/swirlspy/rad/_utils.py:48: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/wradlib/io/iris.py:4095: FutureWarning: IRIS Cartesian Product is currently returned with ``origin='upper'``.
From wradlib version 2.0 the images will be returned with ``origin='lower'``.
To silence this warning set kwarg ``origin='upper'`` or ``origin='lower'``.
filename, loaddata=loaddata, rawdata=rawdata, debug=debug, **kwargs
/tmp/build/docs/swirlspy/swirlspy/rad/_utils.py:48: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/wradlib/io/iris.py:4095: FutureWarning: IRIS Cartesian Product is currently returned with ``origin='upper'``.
From wradlib version 2.0 the images will be returned with ``origin='lower'``.
To silence this warning set kwarg ``origin='upper'`` or ``origin='lower'``.
filename, loaddata=loaddata, rawdata=rawdata, debug=debug, **kwargs
/tmp/build/docs/swirlspy/swirlspy/rad/_utils.py:48: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/wradlib/io/iris.py:4095: FutureWarning: IRIS Cartesian Product is currently returned with ``origin='upper'``.
From wradlib version 2.0 the images will be returned with ``origin='lower'``.
To silence this warning set kwarg ``origin='upper'`` or ``origin='lower'``.
filename, loaddata=loaddata, rawdata=rawdata, debug=debug, **kwargs
/tmp/build/docs/swirlspy/swirlspy/rad/_utils.py:48: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/wradlib/io/iris.py:4095: FutureWarning: IRIS Cartesian Product is currently returned with ``origin='upper'``.
From wradlib version 2.0 the images will be returned with ``origin='lower'``.
To silence this warning set kwarg ``origin='upper'`` or ``origin='lower'``.
filename, loaddata=loaddata, rawdata=rawdata, debug=debug, **kwargs
/tmp/build/docs/swirlspy/swirlspy/rad/_utils.py:48: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/wradlib/io/iris.py:4095: FutureWarning: IRIS Cartesian Product is currently returned with ``origin='upper'``.
From wradlib version 2.0 the images will be returned with ``origin='lower'``.
To silence this warning set kwarg ``origin='upper'`` or ``origin='lower'``.
filename, loaddata=loaddata, rawdata=rawdata, debug=debug, **kwargs
/tmp/build/docs/swirlspy/swirlspy/rad/_utils.py:48: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/wradlib/io/iris.py:4095: FutureWarning: IRIS Cartesian Product is currently returned with ``origin='upper'``.
From wradlib version 2.0 the images will be returned with ``origin='lower'``.
To silence this warning set kwarg ``origin='upper'`` or ``origin='lower'``.
filename, loaddata=loaddata, rawdata=rawdata, debug=debug, **kwargs
/tmp/build/docs/swirlspy/swirlspy/rad/_utils.py:48: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/wradlib/io/iris.py:4095: FutureWarning: IRIS Cartesian Product is currently returned with ``origin='upper'``.
From wradlib version 2.0 the images will be returned with ``origin='lower'``.
To silence this warning set kwarg ``origin='upper'`` or ``origin='lower'``.
filename, loaddata=loaddata, rawdata=rawdata, debug=debug, **kwargs
/tmp/build/docs/swirlspy/swirlspy/rad/_utils.py:48: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
Data Reprojection
This section demonstrates the reprojection of extracted raingauge and radar data to a user-defined grid.
Step 1: Define the target grid as a pyresample AreaDefinition.
# Defining target grid
area_id = "hk1980_250km"
description = ("A 250 m resolution rectangular grid "
"centred at HKO and extending to 250 km "
"in each direction in HK1980 easting/northing coordinates")
proj_id = 'hk1980'
projection = ('+proj=tmerc +lat_0=22.31213333333334 '
'+lon_0=114.1785555555556 +k=1 +x_0=836694.05 '
'+y_0=819069.8 +ellps=intl +towgs84=-162.619,-276.959,'
'-161.764,0.067753,-2.24365,-1.15883,-1.09425 +units=m '
'+no_defs')
x_size = 1000
y_size = 1000
area_extent = (792000, 796000, 880000, 862000)
area_def = utils.get_area_def(
area_id, description, proj_id, projection, x_size, y_size, area_extent
)
/tmp/build/docs/swirlspy/swirlspy/examples/qpe_hk.py:156: UserWarning: 'get_area_def' has moved, import it with 'from pyresample import get_area_def'
area_id, description, proj_id, projection, x_size, y_size, area_extent
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
Step 2: Convert coordinates of raingauge object to desired projection. In this example, the desired projection is HK1980.
# Write a function to make conversion neater
def convert_rain(
rg_object_wgs84,
area_def
):
"""
Convert coordinates in object from WGS84 to HK1980.
Parameters
-----------
rg_object_wgs84: Rain
Rain object with WGS84 coordinates.
area_def: pyresample.geometry.AreaDefinition
AreaDefinition of the target grid.
Returns
-------
rg_object: Rain
Rain object in HK1980.
"""
# Defining Proj objects
geod = pyproj.Proj(init="epsg:4326")
outproj = pyproj.Proj(area_def.proj_str)
gauge_x = []
gauge_y = []
data = []
for tup in rg_object_wgs84.data:
lat = tup[0]
lon = tup[1]
easting, northing = pyproj.transform(
geod, outproj, lon, lat
)
gauge_x.append(easting)
gauge_y.append(northing)
data.append((northing, easting, tup[2], tup[3]))
rg_object = copy.copy(rg_object_wgs84)
rg_object.gauge_x = gauge_x
rg_object.gauge_y = gauge_y
rg_object.data = data
rg_object.proj = 'HK80'
return rg_object
# Calling the function to convert projection system of coordinates
rg_object = convert_rain(rg_object_wgs84, area_def)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:53: FutureWarning: '+init=<authority>:<code>' syntax is deprecated. '<authority>:<code>' is the preferred initialization method. When making the change, be mindful of axis order changes: https://pyproj4.github.io/pyproj/stable/gotchas.html#axis-order-changes-in-proj-6
return _prepare_from_string(" ".join(pjargs))
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:294: FutureWarning: '+init=<authority>:<code>' syntax is deprecated. '<authority>:<code>' is the preferred initialization method. When making the change, be mindful of axis order changes: https://pyproj4.github.io/pyproj/stable/gotchas.html#axis-order-changes-in-proj-6
projstring = _prepare_from_string(" ".join((projstring, projkwargs)))
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
Step 3: Regrid radar reflectivity from Centered Azimuthal Projection to HK1980.
reproj_reflec_list = []
for reflec in reflec_list:
reproj_reflec = grid_resample(
reflec,
reflec.attrs['area_def'],
area_def, coord_label=['easting', 'northing']
)
reproj_reflec_list.append(reproj_reflec)
reflectivity = xarray.concat(reproj_reflec_list, dim='time')
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/image.py:62: FutureWarning: Usage of ImageContainer is deprecated, please use NumpyResamplerBilinear class instead
FutureWarning)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
Accumulating and interpolating rainfall
Interpolate rainfall recorded by raingauges into the user-defined grid and accumulate radar rainfall over an hour after making the necessary adjustments.
Step 1: Interpolate Rain object to user-defined grid.
interpolated_rg = rg_interpolate(
rg_object, area_def, 'rbf',
coord_label=['easting', 'northing']
)
Step 2: Convert to radar reflectivity to rainrates, interpolate rainrates to times of raingauges, and convert to rainfalls accumulated every 5 minutes.
rainrates = dbz2rr(reflectivity, a=58.53, b=1.56)
# Convert time coordinates of rainrates from start time
# to endtime
rainrates_time_endtime = rainrates.copy()
rainrates_time_endtime.coords['time'] = \
[
pd.Timestamp(t) + pd.Timedelta(minutes=6)
for t in rainrates.coords['time'].values
]
rainrates_5min = temporal_interp(
rainrates_time_endtime,
rg_object.start_time + pd.Timedelta(minutes=5),
rg_object.end_time,
intvl=pd.Timedelta(minutes=5),
interp_type='quadratic'
)
rainfalls = rr2rf(rainrates_5min, scan_duration=5)
Step 3: Accumulate rainfall over an hour.
acc_rf = acc(
rainfalls,
rg_object.end_time,
acc_period=pd.Timedelta(minutes=60)
)
Compositing rainfall
Perform compositing on radar and raingauge derived rainfall to obtain a composite QPE.
comprf = comp_qpe(
area_def,
rg_object=rg_object,
rg_interp=interpolated_rg,
rad_rf=acc_rf
)
Plotting
Plot composited radar and raingauge rainfall.
# Plotting function for neatness.
def plot_map(
da, rg_object, acctime, area_def,
based='raingauge and radar',
savepath='',
):
"""
A custom function for plotting a map.
Parameters
--------------
da: xarray.DataArray
Contains data to be plotted.
rg_object: Rain
Contains raingauge data.
acctime: pd.Timestamp
Contains the endtime of the accumulation
period.
area_def: pyresample.geometry.AreaDefinition
AreaDefinition of the grid.
based: str
Type of data plotted in the map.
savepath: str
Path to save the image to.
"""
# Defining the colour scheme
levels = [
0, 0.5, 2, 5, 10, 20,
30, 40, 50, 70, 100, 150,
200, 300, 400, 500, 600, 700
]
cmap = matplotlib.colors.ListedColormap([
'#ffffff', '#9bf7f7', '#00ffff', '#00d5cc', '#00bd3d', '#2fd646',
'#9de843', '#ffdd41', '#ffac33', '#ff621e', '#d23211', '#9d0063',
'#e300ae', '#ff00ce', '#ff57da', '#ff8de6', '#ffe4fd'
])
norm = BoundaryNorm(levels, ncolors=cmap.N, clip=True)
# Plotting axes
plt.figure(figsize=(28, 21))
crs = area_def.to_cartopy_crs()
ax = plt.axes(projection=crs)
# Plot data
quadmesh = da.plot(
cmap=cmap,
norm=norm,
extend='neither',
cbar_kwargs={'ticks': levels}
)
# Adjusting size of colorbar
cb = quadmesh.colorbar
cb.ax.set_ylabel(
da.attrs['long_name']+'['+da.attrs['units']+']',
fontsize=28
)
cb.ax.tick_params(labelsize=24)
# Setting labels
ax.xaxis.set_visible(True)
ax.yaxis.set_visible(True)
for tick in ax.xaxis.get_major_ticks():
tick.label.set_fontsize(24)
for tick in ax.yaxis.get_major_ticks():
tick.label.set_fontsize(24)
ax.xaxis.label.set_size(28)
ax.yaxis.label.set_size(28)
# Coastlines
shpfile = THIS_DIR + \
'/../tests/samples/gadm36_HKG_shp/gadm36_HKG_0_hk1980.shp'
shp = shapereader.Reader(shpfile)
for record, geometry in zip(shp.records(), shp.geometries()):
ax.add_geometries([geometry], crs, facecolor='None', edgecolor='black')
# Show raingauge
show_raingauge(
rg_object, ax, show_value=False, color='red',
markersize=16, fontsize=16, adjust_labels=False
)
# Show title
plt.title(
(f"Last Hour Rainfall at {acctime.strftime('%H:%MH %d-%b-%Y')}\n"
f"(based on {based} data)"),
fontsize=32
)
# from cartopy import feature
# hires = feature.GSHHSFeature(
# levels=[1],
# scale='h',
# edgecolor='red'
# )
# ax.add_feature(hires)
plt.savefig(savepath, dpi=300)
# Plotting maps
# Raingauge only
plot_map(
interpolated_rg, rg_object,
acctime, area_def,
based='raingauge',
savepath=THIS_DIR+f'/../tests/outputs/raingauge_{acctime_str}.png'
)

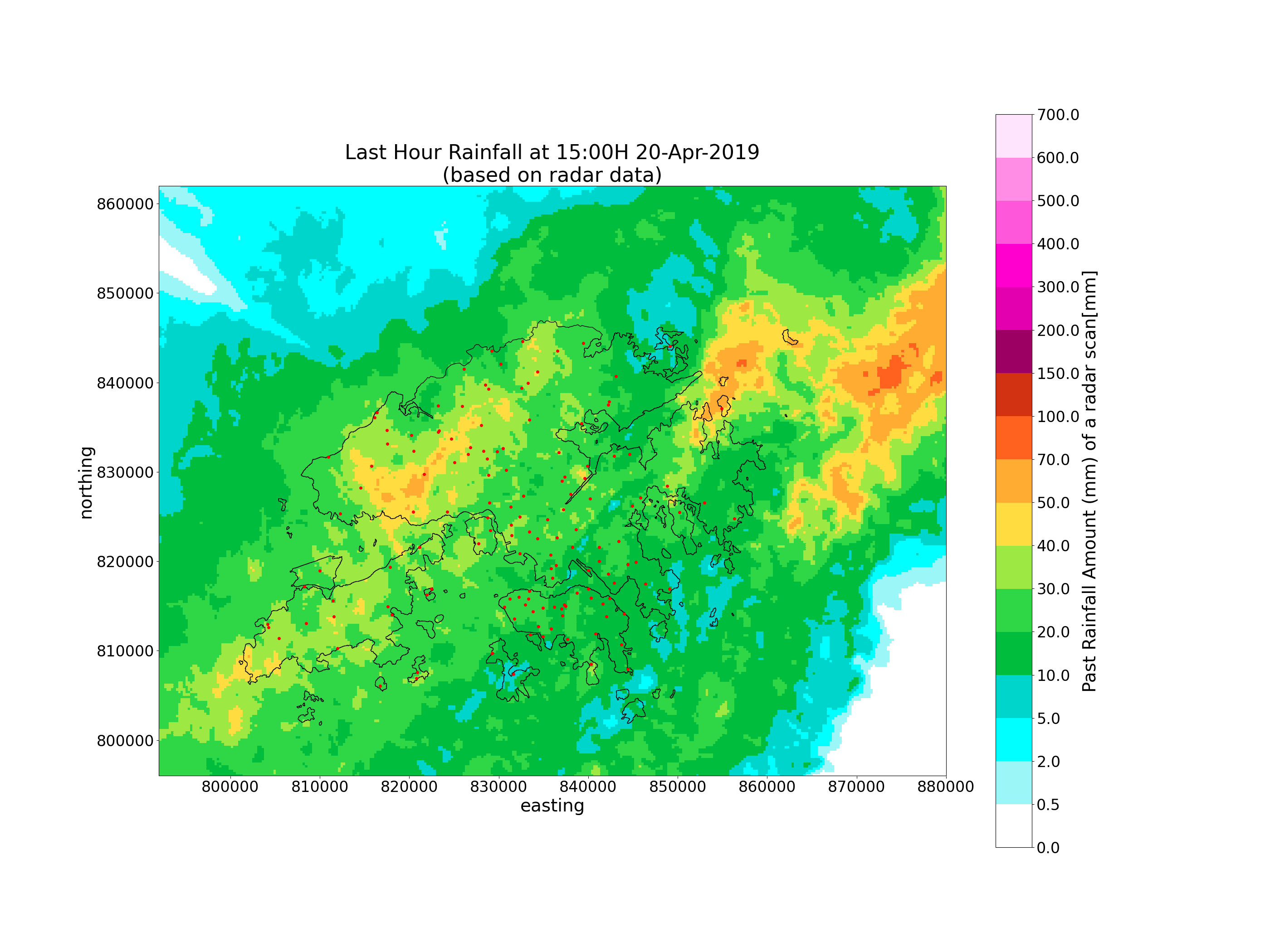

# Radar only
plot_map(
acc_rf, rg_object,
acctime, area_def,
based='radar',
savepath=THIS_DIR+f'/../tests/outputs/radar_{acctime_str}.png'
)
# Composite raingauge and radar
plot_map(
comprf, rg_object,
acctime, area_def,
savepath=THIS_DIR+f'/../tests/outputs/comp_{acctime_str}.png'
)
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyresample/geometry.py:1617: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_params = self.crs.to_proj4()
/opt/conda/envs/swirlspy/lib/python3.6/site-packages/pyproj/crs/crs.py:543: UserWarning: You will likely lose important projection information when converting to a PROJ string from another format. See: https://proj.org/faq.html#what-is-the-best-format-for-describing-coordinate-reference-systems
proj_string = self.to_proj4()
Total running time of the script: ( 1 minutes 10.751 seconds)
